Stainless Steel 316L Pipes & Tubes Stockist in India

  • Home
  • Pipes & Tubes

SS 316L Seamless Pipe, UNS S31603 Pipes, AISI 316L Seamless Tubes, SUS 316L Welded Pipes Stockists in Mumbai, India.

Table of Contents

What is 316L Stainless Steel Pipes & Tubes ?
Stainless Steel 316L Pipes & Tubes Specification
SS 316L Pipe & Tube Manufacturing Standards
Different Stainless Steel 316L Pipes & Tubes Types
SS 316L Pipes & Tubes Equivalent Material Grade
Stainless Steel 316L Pipe Size Chart
Stainless Steel 316L Tubing Dimensions
Chemical Composition of SS 316L Pipes & Tubes
Mechanical Properties of SS 316L Pipes & Tubes
Stainless Steel 316L Pipes & Tubes Sizes in Stock
Available Stock of Stainless Steel 316L Pipes & Tubes
Industries & Applications

A reputable manufacturer and distributor of SS 316L Pipes & Tubes, Nandini Steel offers these products in a variety of sizes, grades, specifications, and thicknesses to suit the needs of its clients. They may also be exceptionally resistant to various atmospheres in addition to their superior oxidation resistance in air. It is possible to use at high temperatures in atmospheres with sulphur and other competitive substances thanks to the highly protective oxide layer. High creep energy, good structural balance at high temperatures, and good weldability are all characteristics of stainless steel UNS S31603 round pipes. Additionally, it provides a maximum working temperature of around 1150 degrees Celsius (2100 Degree F).

It also exhibits good resistance to cycle oxidation and isothermal oxidation. It maintains its heat-resistant qualities thanks to expert microalloy addition control. It is a grade that combines excellent service characteristics at high temperatures without posing fabrication issues. Due to its excellent oxidation resistance, stainless steel WNR 1.4404 square tubes are suitable for use as information in buildings, production facilities, and ovens. Boiler Nozzles, corrugated boxes, cyclones, bar baskets, and other items frequently use it.

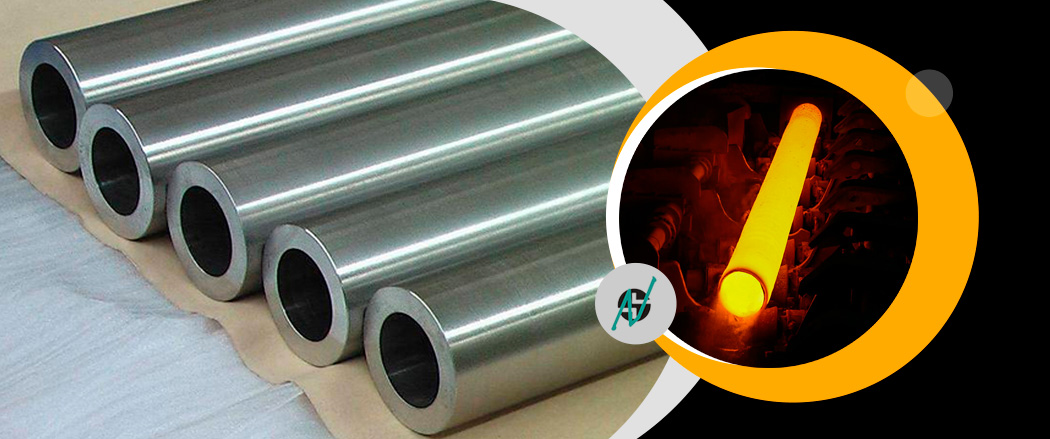

Stainless Steel 316L Pipes & Tubes

Jindal 316L Stainless Steel Pipe, ASTM A312 TP316L Seamless Pipes, SS 316L Industrial Pipes, DIN 1.4404 Pipes Supplier in Mumbai, India.

They include kilns, expanded bellows, stack dampers, heated radiant heating tubes, heat exchangers, and heat-treating oven additives. Along with adhering to safety standards and being of the highest quality worldwide, 316L stainless steel rectangular pipes are reliable and long-lasting. Our selection of tubes is available in certain lengths and diameters and is constructed of a lot of high-quality structural and mechanical materials. We provide a premium selection of these Alloy 316L Hexagonal Pipes to meet the needs of our clients. These pipes are incredibly stable, quenched in state, and ensure prolonged performance. If your employer requests a strong point, we will let you specify your needs and provide you with a quote. The tubes and pipes we offer
Pipes & Tubes
AISI 316L, UNS S31603, 1.4404, EN X2CrNiMo17-12-2, SUS316L, AFNOR Z3CND17-11-02, BS 316S11, UNI X2CrNiMo17-17-12, PN 00H17N13M2 PIPES & TUBES STOCKIST.

Stainless Steel 316L Pipes & Tubes Specification

Standards
  • ASTM A213 / ASME SA213
  • ASTM A249 / ASME SA249
  • ASTM A269 / ASME SA269
  • ASTM A554 / ASME SA554
  • ASTM A270 / ASME SA270
  • ASTM A358 / ASME SA358
  • ASTM A312 / ASME SA312
Specialized in Large Diameter Pipe
Pipe size 5.0 milimeter - 1219.2 milimeter
Pipe Finish AP (Annealed & Pickled), Polished, MF, BA (Bright & Annealed)
Schedule SCH10, SCH5, STD, SCH40, SCH160, SCH80
Length Double Random, Single Random & Cut Length.
Pipe Form Square, Round, Rectangular, Hollow, Straight, Hydraulic Pipes, Etc.
Pipe End Beveled End, Plain End, Threaded.
Material Test Certificates (MTC) EN 10204 3.1
EN 10204 3.2
Marking All Pipes are marked as follows: Grade, Standard, Thickness, OD, Heat No. (Or according to the customer’s request.), Length
Swg & Bwg 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg.
Tube Size 6.35 milimeter Outside Diameter To 152 milimeter Outside Diameter
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Wall Thickness 0.020" to 0.220", (special wall thicknesses available)
Tube Type ERW, Seamless, Welded, EFW, Fabricated
Tube Form Boiler, Straight, Rectangular, Round, Coil, Square, Hydraulic, LSAW, Hollow,‘U’ bent Tubes Etc.

SS 316L Pipe & Tube Manufacturing Standards

ASTM ASME Description
ASTM A312 SA 312 Seamless and straight-seam welded austenitic pipe
ASTM A358 SA 358 Electric fusion welded (EFW) austenitic pipe, up to 8 inch
ASTM A213 SA 213 Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A249 SA 249 Welded Austenitic Steel Boiler, Superheater, Condenser and Heat Exchanger, Tubes
ASTM A269 SA 269 Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A409 SA 409 Welded Large Diameter Austenitic Steel Pipe
ASTM A376 SA 376 High Temperature SS Seamless Austenitic Steel Pipe
ASTM A813 SA 813 Single-seam, single / double welded austenitic pipe
ASTM A814 SA 814 Cold-worked welded austenitic pipe
ASTM A554 SA 554 Stainless Steel Welded Stainless Steel Mechanical Tubing and SS Square Pipe
ASTM A511 SA 511 Stainless Steel Seamless Mechanical Tubing
ASTM A632 SA 632 Small-Diameter Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A688 SA 688 Austenitic Stainless Steel Feedwater Heater Tubes, Welded
ASTM A778 SA 778 Welded, Unannealed Austenitic Stainless Steel Pipe/ Tube

Different Stainless Steel 316L Pipes & Tubes Types

Stainless Steel 316L Seamless Pipe
Stainless Steel 316L Seamless Pipe
Stainless Steel 316L Welded Pipe
Stainless Steel 316L Welded Pipe
Stainless Steel 316L ERW Pipe
Stainless Steel 316L ERW Pipe
Stainless Steel 316L EFW Pipe
Stainless Steel 316L EFW Pipe
Stainless Steel 316L Seamless Tubes
Stainless Steel 316L Seamless Tubes
Stainless Steel 316L Welded Tubes
Stainless Steel 316L Welded Tubes

SS 316L Pipes & Tubes Equivalent Material Grade

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Stainless Steel 316L Pipe Size Chart

PIPE SIZE OD IN INCHES A.S.A. Pipe Schedules
5s 5 10s 10 20 30 40s & Std. 40 60 80s & E.H. 80 100 120 140 160 DBL E.H.
1/8 .405 .035.1383 .049.1863 .049.1863 .068.2447 068.2447 0.95.3145 0.95.3145
1/4 .540 .049.2570 .065.3297 .065.3297 .088.4248 088.4248 .119.5351 .119.5351
3/8 .675 .049.3276 .065.4235 .065.4235 .091.5676 .091.5676 .126.7338 .126.7338
1/2 .840 .065.5383 .065.5383 .083.6710 .083.6710 .109.8510 .109.8510 .1471.088 .1471.088 .1871.304 .2941.714
3/4 1.050 .065.6838 .065.6838 .083.8572 .083.8572 .1131.131 .1131.131 .1541.474 .1541.474 .2181.937 .3082.441
1 1.315 .065.8678 .065.8678 .1091.404 .1091.404 .1331.679 .1331.679 .1792.172 .1792.172 .2502.844 .3583.659
1-1/4 1.660 .0651.107 .0651.107 .1091.806 .1091.806 .1402.273 .1402.273 .1912.997 .1912.997 .2503.765 .3825.214
1-1/2 1.900 .0651.274 .0651.274 .1092.085 .1092.085 .1452.718 .1452.718 .2003.631 .2003.631 .2814.859 .4006.408
2 2.375 .0651.604 .0651.604 .1092.638 .1092.638 .1543.653 .1543.653 .2185.022 .2185.022 .3437.444 .4369.029
2-1/2 2.875 .0832.475 .0832.475 .1203.531 .1203.531 .2035.793 .2035.793 .2767.661 .2767.661 .37510.01 .55213.70
3 3.500 .0833.029 .0833.029 .1204.332 .1204.332 .2167.576 .2167.576 .30010.25 .30010.25 .43714.32 .60018.58
3-1/2 4.000 .0833.472 .0833.472 .1204.973 .1204.973 .2269.109 .2269.109 .31812.51 .31812.51 .63622.85
4 4.500 .0833.915 .0833.915 .1205.613 .1205.613 .23710.79 .23710.79 .28112.66 .33714.98 .33714.98 .43719.01 .53122.51 .67427.54
4-1/2 5.000 .24712.53 .35517.61 .71032.53
5 5.563 .1096.349 .1096.349 .1347.770 .1347.770 .25814.62 .25814.62 .37520.78 .37520.78 .50027.04 .62532.96 .75038.55
6 6.625 .1097.585 .1097.585 .1349.290 .1349.290 .28018.97 .28018.97 .43228.57 .43228.57 .56236.39 .71845.30 .86453.16
7 7.625 .30123.57 .50038.05 .87563.08

Stainless Steel 316L Tubing Dimensions

Size
OD, Inches		 BW
Ga.		 Wall
Dec-In.		 ID Weight
Lbs/Ft.
1/8 22 0.028 0.069 0.0290
20 0.035 0.055 0.0336
3/16 22 0.028 0.131 0.0478
1/4 25 0.020 0.210 0.0491
22 0.028 0.194 0.0664
21 0.032 0.187 0.0745
20 0.035 0.180 0.0804
18 0.049 0.152 0.1052
16 0.065 0.120 0.1284
5/16 20 0.035 0.242 0.1039
18 0.049 0.214 0.1382
16 0.065 0.182 0.1722
3/8 22 0.028 0.319 0.1038
20 0.035 0.305 0.1271
18 0.049 0.277 0.1706
16 0.065 0.245 0.2152
7/16 18 0.049 0.340 0.2036
1/2 25 0.020 0.460 0.1025
20 0.035 0.430 0.1738
18 0.049 0.402 0.2360
16 0.065 0.370 0.3020
5/8 20 0.035 0.555 0.2205
18 0.049 0.527 0.3014
16 0.065 0.495 0.3888
3/4 20 0.035 0.680 0.2673
18 0.049 0.652 0.3668
16 0.065 0.620 0.4755
14 0.083 0.584 0.5913
7/8 18 0.049 0.777 0.4323
16 0.065 0.745 0.5623
11 0.120 0.635 0.9676
1 20 0.035 0.930 0.3607
18 0.049 0.902 0.4977
16 0.065 0.870 0.6491
14 0.083 0.834 0.8129
11 0.120 0.760 1.1278
1-1/4 11 0.120 1.010 1.4480
OD inches Ave. Wall inches D/t Ratio ID inches Tubing Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1213
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904
Pipes & Tubes
Contact Nandini Steel for you all requirement of Stainless Steel 316L Pipes & Tubes in Russia, Morocco, South Korea, Bahrain, Malaysia, UAE, Kuwait, Saudi Arabia, USA, South Africa.
Stockist of SS 316L Seamless Pipes in India, SS 316L Seamless Tubing in various sizes.
ENQUIRY NOW

Worldwide equivalents of grade 316L

EU
EN 		USA
-		 Germany
DIN,WNr		 Japan
JIS 		France
AFNOR		 England
BS		 Italy
UNI		 China
GB		 Sweden
SS		 Poland
PN		 Czechia
CSN		 Finland
SFS		 Austria
ONORM		 Inter
ISO
X2CrNiMo17-12-2 (1.4404) 316L X2CrNiMo17-13-2 SUS316L Z2CND17-12
Z3CND17-11-02
Z3CND18-12-02 		316S11 X2CrNiMo17-12
X2CrNiMo17-17-12		 00Cr17Ni14Mo2
0Cr18Ni12Mo2Ti		 2348 00H17N13M2
00H17N14M2		 17349 750 X2CrNiMo17-13-2KKW Type19

Chemical Composition of Stainless Steel 316L Pipes & Tubes

Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

Mechanical Properties of Stainless Steel 316L Pipes & Tubes

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

You May Also Like Buy These Grades :


We offer These SS 316L Pipes & Tubes as per ASTM, ASME, BS, DIN, EN.
REQUEST A QUOTE

Available Stock of Stainless Steel 316L Pipes & Tubes

  • Jindal 316L Stainless Steel Piping
  • ASTM A213 TP316L Coiled Tubing
  • 316L Schedule 40 Stainless Steel Pipe
  • AFNOR Z2CND17-12 Seamless Tubes
  • EN X2CrNiMo17-12-2 Stainless Steel SMLS Pipe
  • ONORM X2CrNiMo17-13-2KKW Piping
  • PN 00H17N13M2 Polished Pipe
  • UNI X2CrNiMo17-12 Thin Wall Pipe
  • AISI 316L Schedule 80 Pipe
  • Schedule 10 316L Stainless Steel Tube
  • ASTM A213 316L SS Condenser Tubes
  • UNS S31603 Seamless Pipes

Industries & Applications Where Our Stainless Steel 316L Pipes & Tubes is Used

We Manufacturer, Supplier and Exporter ASTM A312 / A213 Stainless Steel 316L Pipes & Tubes for wide range of industries. Some of the examples are : – Constructions, Power Plants, Automobiles, Pharmaceuticals, Chemicals, Paper & Pulp Industries, Dairies & Breweries, Water Pipelines, Food & Beverages, Architectural applications, Petrochemicals, Railways, Textiles, Nuclear, Refineries, Shipbuilding, Sugar Mills etc.

Oil & Gas
0%
Chemicals
0%
Shipbuilding
0%
Power Plants
0%
Paper & Pulp Industries
0%
Railways
0%
Contact Nandini Steel for you all requirement of

Industrial Products in Kuwait, Morocco, South Africa, Saudi Arabia, Bahrain, UAE, South Korea, Russia, USA, Malaysia.

Start Your PROJECTS

Address

25, Dreamland Building, 601, 6th Floor,
Mama Parmanand Marg, Operahouse,
Charni Road, Girgaon, Mumbai - 400004, India

Phone

E-Mail

Copyright © 2022 Nandini Steel. All Rights Reserved
