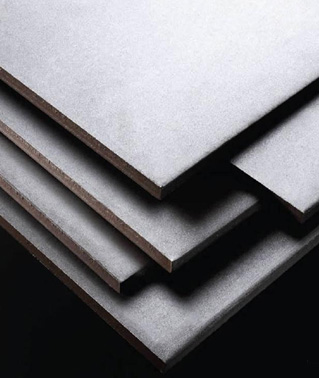

Sanicro 28 Plates / Alloy 28 Plates are produced by Nandini Steel, a reputable producer and exporter, using top-notch raw materials under the strict supervision of experienced top-level managers. It is renowned for its high quality, affordable price, long service life, longer service life, minimal maintenance, corrosion resistance, and other characteristics. UNS N08028 Plates are examined using our top-notch controllers on a variety of factors in order to ensure their faultlessness on our end. It is another low-carbon version that eliminates carbide precipitation from welding thanks to a high carbon concentration. It has some wonderful features like being robustly built, having an excellent design that is sturdy, having a high load bearing capacity, having accurate designs and parameters, and more.
We work to provide a wide array of products to our customers, most of which are utilised in the water and sewage treatment, water, gas, steam, and air lines, the conveyor industry, the oil and gas industry, and agriculture. It is praised for having strong tensile and compressive characteristics as well as a low coefficient of friction, being light and simple to machine. Additionally, DIN 1.4563 Plates are used in the petrochemical, scientific system, and beverage filling equipment industries. It offers a wide range of working temperatures, is extremely chemical resistant, and has a very clean surface. Due to the need to produce these goods in accordance with the highest industry standards, we set up sophisticated machinery at our ultra-modern facility.
Specifications | ASTM B709 / ASME SB709 |
---|---|
Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
Size Range | Cold rolled Plate 0.5-6.4 mm Hot rolled Plate 3.0–10.0 mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Thickness | 0.3 mm to 120 mm |
Tolerances (width / thickness) | EN 10258/ DIN 59381) EN 10151 EN 10088 |
Finish | 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Plate Surface finish | Thickness (mm) | Width (max mm) |
---|---|---|
2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
2H – Work hardened plate | 0.4–6.35 | 1524 |
Polished, brushed plate | 0.5–4.0 | 1524 |
Plate Surface finish | Gauge (in) | Width (max in) |
2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
BA Mexinox only | 18–28 | 48 |
Polished Sheet (not brushed) | 11–24 | 60 |
Temper rolled Sheet Mexinox only | 13–29 | 48 |
STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
Alloy 28 | 1.4563 | N08028 | Z1NCDU31-27-03 | X1NiCrMoCuN31-27-4 |
Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
---|---|---|---|---|---|---|
inches | mm | lbs/ft² | kg/m² | lbs | kg | |
0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
10 | 78.5 | 94 | 118 | 141 | 188 |
12 | 94.2 | 113 | 141 | 170 | 226 |
16 | 125.6 | 151 | 188 | 226 | 301 |
20 | 157 | 188 | 236 | 283 | 377 |
22 | 172.7 | 207 | 259 | 311 | 415 |
25 | 196.25 | 236 | 294 | 353 | 471 |
28 | 219.8 | 264 | 330 | 396 | 528 |
32 | 251.2 | 301 | 377 | 452 | 603 |
36 | 282.6 | 339 | 424 | 509 | 678 |
40 | 314 | 377 | 471 | 565 | 754 |
45 | 353.25 | 424 | 530 | 636 | 848 |
50 | 392.5 | 471 | 589 | 707 | 942 |
55 | 431.75 | 518 | 648 | 777 | 1036 |
60 | 471 | 565 | 707 | 848 | 1130 |
65 | 510 | 612 | 765 | 918 | 1224 |
70 | 549.5 | 659 | 824 | 989 | 1319 |
75 | 588.75 | 707 | 883 | 1060 | 1413 |
80 | 628 | 754 | 942 | 1130 | 1507 |
90 | 706.5 | 848 | 1060 | 1272 | 1696 |
100 | 785 | 942 | 1178 | 1413 | 1884 |
EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
X1NiCrMoCu31-27-4 (1.4563) | Alloy 28 UNS N08028 |
1.4563 X 1 NiCrMoCuN 31 27 4 |
- | Z1NCDU31-27-03 | - | - | - | 2584 | - | - | - | - | 02Ch27N31M4 02Х27Н31М4 |
Element | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo |
Sanicro 28 | 0.02 max | 2 max | 0.70 max | 0.03 max | 0.60 - 1.40 | 30 - 32 | 26 - 28 | 22 min | 3 - 4 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1443 °C (2430 °F) | MPa -650 | MPa - 250 | 40 % |
We Manufacturer, Supplier and Exporter ASTM B709 Sanicro 28 / Alloy 28 Plates for wide range of industries. Some of the examples are : – Constructions, Power Plants, Refineries, Chemicals, Pharmaceuticals, Railways, Dairies & Breweries, Sugar Mills, Petrochemicals, Water Pipelines, Textiles, Automobiles, Nuclear, Paper & Pulp Industries, Food & Beverages, Architectural applications, Shipbuilding etc.
