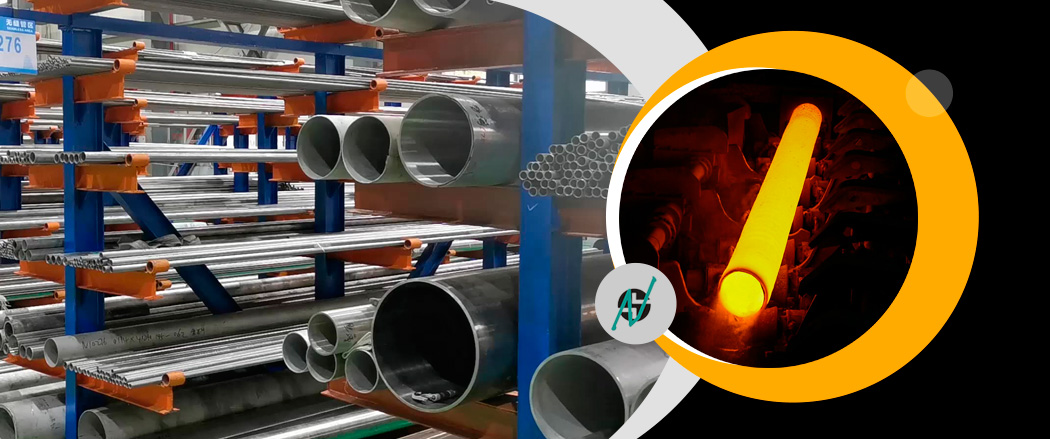

Nickel Alloy 200 Pipes & Tubes from Nandini Steel are well-known for their resistance to grain boundary carbide precipitation (sensitisation). Columbium-tantalum carbides precipitate within the grains rather than developing on the grain borders because the components in these tubes have a stronger affinity for carbon than chromium. It must be taken into account for welding below conditions that prevent a post-weld anneal or for applications needing intermittent heating between 800°F (427°C) and 1650°F (899°C). The inclusion of tantalum and columbium stabilises nickel alloy UNS N02200 EFW Pipes, which is non-magnetic by nature. Stabilized stainless steel provides excellent resistance.
Depending on the precipitation or ageing temperature used in the hardening process, it can achieve a wide range of durability and strength attributes. The base metals' and welds' cherished combination of high strength, precise corrosion resistance, and durability gives designers opportunities to emphasise dependability in these goods while streamlining manufacture and frequently lowering costs. We are one of the original investors & suppliers of these pipes, which can be hot-forged, effect-extruded, or hot-dissatisfied. Ingot of nickel, WNR 2.4066 ERW The corrosion resistance of tubes can be employed for extended periods of time at high temperatures.
Standards |
|
---|---|
Specialized in | Large Diameter Pipe |
Pipe size | 4 to 219 Milimeter W. T.: 0.5 to 20 Milimeter |
Tube Size | 1 mm OD upto 254 mm OD in 0.2 TO 20 mm thickness. |
Sizes in Inch | 15 Inch NB TO 150 Inch NB IN |
Schedule | SCH5, SCH40, SCH10, STD, SCH160, SCH80 |
Length | Double, Single Random & Cut Length. |
Form | Hydraulic, Round Etc |
End | Plain End, Treaded, Beveled End |
Material Test Certificates (MTC) | EN 10204 3.1 EN 10204 3.2 |
Marking | All Pipes are marked as follows: Grade, Standard, Thickness, OD, Heat No. (Or according to the customer’s request.), Length |
Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Wall Thickness | 0.020" to 0.220", (special wall thicknesses available) |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
PIPE SIZE | OD IN INCHES | A.S.A. Pipe Schedules | |||||||||||||||
5s | 5 | 10s | 10 | 20 | 30 | 40s & Std. | 40 | 60 | 80s & E.H. | 80 | 100 | 120 | 140 | 160 | DBL E.H. | ||
1/8 | .405 | .035.1383 | .049.1863 | .049.1863 | .068.2447 | 068.2447 | 0.95.3145 | 0.95.3145 | |||||||||
1/4 | .540 | .049.2570 | .065.3297 | .065.3297 | .088.4248 | 088.4248 | .119.5351 | .119.5351 | |||||||||
3/8 | .675 | .049.3276 | .065.4235 | .065.4235 | .091.5676 | .091.5676 | .126.7338 | .126.7338 | |||||||||
1/2 | .840 | .065.5383 | .065.5383 | .083.6710 | .083.6710 | .109.8510 | .109.8510 | .1471.088 | .1471.088 | .1871.304 | .2941.714 | ||||||
3/4 | 1.050 | .065.6838 | .065.6838 | .083.8572 | .083.8572 | .1131.131 | .1131.131 | .1541.474 | .1541.474 | .2181.937 | .3082.441 | ||||||
1 | 1.315 | .065.8678 | .065.8678 | .1091.404 | .1091.404 | .1331.679 | .1331.679 | .1792.172 | .1792.172 | .2502.844 | .3583.659 | ||||||
1-1/4 | 1.660 | .0651.107 | .0651.107 | .1091.806 | .1091.806 | .1402.273 | .1402.273 | .1912.997 | .1912.997 | .2503.765 | .3825.214 | ||||||
1-1/2 | 1.900 | .0651.274 | .0651.274 | .1092.085 | .1092.085 | .1452.718 | .1452.718 | .2003.631 | .2003.631 | .2814.859 | .4006.408 | ||||||
2 | 2.375 | .0651.604 | .0651.604 | .1092.638 | .1092.638 | .1543.653 | .1543.653 | .2185.022 | .2185.022 | .3437.444 | .4369.029 | ||||||
2-1/2 | 2.875 | .0832.475 | .0832.475 | .1203.531 | .1203.531 | .2035.793 | .2035.793 | .2767.661 | .2767.661 | .37510.01 | .55213.70 | ||||||
3 | 3.500 | .0833.029 | .0833.029 | .1204.332 | .1204.332 | .2167.576 | .2167.576 | .30010.25 | .30010.25 | .43714.32 | .60018.58 | ||||||
3-1/2 | 4.000 | .0833.472 | .0833.472 | .1204.973 | .1204.973 | .2269.109 | .2269.109 | .31812.51 | .31812.51 | .63622.85 | |||||||
4 | 4.500 | .0833.915 | .0833.915 | .1205.613 | .1205.613 | .23710.79 | .23710.79 | .28112.66 | .33714.98 | .33714.98 | .43719.01 | .53122.51 | .67427.54 | ||||
4-1/2 | 5.000 | .24712.53 | .35517.61 | .71032.53 | |||||||||||||
5 | 5.563 | .1096.349 | .1096.349 | .1347.770 | .1347.770 | .25814.62 | .25814.62 | .37520.78 | .37520.78 | .50027.04 | .62532.96 | .75038.55 | |||||
6 | 6.625 | .1097.585 | .1097.585 | .1349.290 | .1349.290 | .28018.97 | .28018.97 | .43228.57 | .43228.57 | .56236.39 | .71845.30 | .86453.16 | |||||
7 | 7.625 | .30123.57 | .50038.05 | .87563.08 |
Size OD, Inches |
BW Ga. |
Wall Dec-In. |
ID | Weight Lbs/Ft. |
1/8 | 22 | 0.028 | 0.069 | 0.0290 |
20 | 0.035 | 0.055 | 0.0336 | |
3/16 | 22 | 0.028 | 0.131 | 0.0478 |
1/4 | 25 | 0.020 | 0.210 | 0.0491 |
22 | 0.028 | 0.194 | 0.0664 | |
21 | 0.032 | 0.187 | 0.0745 | |
20 | 0.035 | 0.180 | 0.0804 | |
18 | 0.049 | 0.152 | 0.1052 | |
16 | 0.065 | 0.120 | 0.1284 | |
5/16 | 20 | 0.035 | 0.242 | 0.1039 |
18 | 0.049 | 0.214 | 0.1382 | |
16 | 0.065 | 0.182 | 0.1722 | |
3/8 | 22 | 0.028 | 0.319 | 0.1038 |
20 | 0.035 | 0.305 | 0.1271 | |
18 | 0.049 | 0.277 | 0.1706 | |
16 | 0.065 | 0.245 | 0.2152 | |
7/16 | 18 | 0.049 | 0.340 | 0.2036 |
1/2 | 25 | 0.020 | 0.460 | 0.1025 |
20 | 0.035 | 0.430 | 0.1738 | |
18 | 0.049 | 0.402 | 0.2360 | |
16 | 0.065 | 0.370 | 0.3020 | |
5/8 | 20 | 0.035 | 0.555 | 0.2205 |
18 | 0.049 | 0.527 | 0.3014 | |
16 | 0.065 | 0.495 | 0.3888 | |
3/4 | 20 | 0.035 | 0.680 | 0.2673 |
18 | 0.049 | 0.652 | 0.3668 | |
16 | 0.065 | 0.620 | 0.4755 | |
14 | 0.083 | 0.584 | 0.5913 | |
7/8 | 18 | 0.049 | 0.777 | 0.4323 |
16 | 0.065 | 0.745 | 0.5623 | |
11 | 0.120 | 0.635 | 0.9676 | |
1 | 20 | 0.035 | 0.930 | 0.3607 |
18 | 0.049 | 0.902 | 0.4977 | |
16 | 0.065 | 0.870 | 0.6491 | |
14 | 0.083 | 0.834 | 0.8129 | |
11 | 0.120 | 0.760 | 1.1278 | |
1-1/4 | 11 | 0.120 | 1.010 | 1.4480 |
OD inches | Ave. Wall inches | D/t Ratio | ID inches | Tubing Cross Sectional Area (in2) | Internal Area (in2) |
---|---|---|---|---|---|
0.250 | 0.020 | 12.50 | 0.210 | 0.0145 | 0.0346 |
0.250 | 0.028 | 8.93 | 0.194 | 0.0195 | 0.0296 |
0.250 | 0.035 | 7.14 | 0.180 | 0.0236 | 0.0254 |
0.250 | 0.049 | 5.10 | 0.152 | 0.0309 | 0.0181 |
0.250 | 0.065 | 3.85 | 0.120 | 0.0378 | 0.0113 |
0.375 | 0.020 | 18.75 | 0.335 | 0.0223 | 0.0881 |
0.375 | 0.028 | 13.39 | 0.319 | 0.0305 | 0.0799 |
0.375 | 0.035 | 10.71 | 0.305 | 0.0374 | 0.0731 |
0.375 | 0.049 | 7.65 | 0.277 | 0.0502 | 0.0603 |
0.375 | 0.065 | 5.77 | 0.245 | 0.0633 | 0.0471 |
0.500 | 0.020 | 25.00 | 0.460 | 0.0302 | 0.1662 |
0.500 | 0.028 | 17.86 | 0.444 | 0.0415 | 0.1548 |
0.500 | 0.035 | 14.29 | 0.430 | 0.0511 | 0.1452 |
0.500 | 0.049 | 10.20 | 0.402 | 0.0694 | 0.1213 |
0.500 | 0.065 | 7.69 | 0.370 | 0.0888 | 0.1075 |
0.500 | 0.083 | 6.02 | 0.334 | 0.1087 | 0.0876 |
0.625 | 0.020 | 31.25 | 0.585 | 0.0380 | 0.2688 |
0.625 | 0.028 | 22.32 | 0.569 | 0.0525 | 0.2543 |
0.625 | 0.035 | 17.86 | 0.555 | 0.0649 | 0.2419 |
0.625 | 0.049 | 12.76 | 0.527 | 0.0887 | 0.2181 |
0.625 | 0.065 | 9.62 | 0.495 | 0.1144 | 0.1924 |
0.625 | 0.083 | 7.53 | 0.459 | 0.1413 | 0.1655 |
0.625 | 0.095 | 6.58 | 0.435 | 0.1582 | 0.1486 |
0.625 | 0.109 | 5.73 | 0.407 | 0.1767 | 0.1301 |
0.750 | 0.028 | 26.79 | 0.694 | 0.0635 | 0.3783 |
0.750 | 0.035 | 21.43 | 0.680 | 0.0786 | 0.3632 |
0.750 | 0.049 | 15.31 | 0.652 | 0.1079 | 0.3339 |
0.750 | 0.065 | 11.54 | 0.620 | 0.1399 | 0.3019 |
0.750 | 0.083 | 9.04 | 0.584 | 0.1739 | 0.2679 |
0.750 | 0.095 | 7.89 | 0.560 | 0.1955 | 0.2463 |
0.750 | 0.109 | 6.88 | 0.532 | 0.2195 | 0.2223 |
0.750 | 0.120 | 6.25 | 0.510 | 0.2375 | 0.2043 |
0.875 | 0.020 | 43.75 | 0.835 | 0.0537 | 0.5476 |
0.875 | 0.028 | 31.25 | 0.819 | 0.0745 | 0.5268 |
0.875 | 0.035 | 25.00 | 0.805 | 0.0924 | 0.5090 |
0.875 | 0.049 | 17.86 | 0.777 | 0.1272 | 0.4742 |
0.875 | 0.065 | 13.46 | 0.745 | 0.1654 | 0.4359 |
0.875 | 0.083 | 10.54 | 0.709 | 0.2065 | 0.3948 |
0.875 | 0.095 | 9.21 | 0.685 | 0.2328 | 0.3685 |
0.875 | 0.109 | 8.03 | 0.657 | 0.2623 | 0.3390 |
0.875 | 0.120 | 7.29 | 0.635 | 0.2846 | 0.3167 |
1.000 | 0.028 | 35.71 | 0.944 | 0.0855 | 0.6999 |
1.000 | 0.035 | 28.57 | 0.930 | 0.1061 | 0.6793 |
1.000 | 0.049 | 20.41 | 0.902 | 0.1464 | 0.6390 |
1.000 | 0.065 | 15.38 | 0.870 | 0.1909 | 0.5945 |
1.000 | 0.083 | 12.05 | 0.834 | 0.2391 | 0.5463 |
1.000 | 0.095 | 10.53 | 0.810 | 0.2701 | 0.5153 |
1.000 | 0.109 | 9.17 | 0.782 | 0.3051 | 0.4803 |
1.000 | 0.120 | 8.33 | 0.760 | 0.3318 | 0.4536 |
1.000 | 0.134 | 7.46 | 0.732 | 0.3646 | 0.4208 |
1.250 | 0.035 | 35.71 | 1.180 | 0.1336 | 1.0936 |
1.250 | 0.049 | 25.51 | 1.152 | 0.1849 | 1.0423 |
1.250 | 0.065 | 19.23 | 1.120 | 0.2420 | 0.9852 |
1.250 | 0.083 | 15.06 | 1.084 | 0.3043 | 0.9229 |
1.250 | 0.095 | 13.16 | 1.060 | 0.3447 | 0.8825 |
1.250 | 0.109 | 11.47 | 1.032 | 0.3907 | 0.8365 |
1.250 | 0.120 | 10.42 | 1.010 | 0.4260 | 0.8012 |
1.250 | 0.134 | 9.33 | 0.982 | 0.4698 | 0.7574 |
1.500 | 0.035 | 42.86 | 1.430 | 0.1611 | 1.6061 |
1.500 | 0.049 | 30.61 | 1.402 | 0.2234 | 1.5438 |
1.500 | 0.065 | 23.08 | 1.370 | 0.2930 | 1.4741 |
1.500 | 0.083 | 18.07 | 1.334 | 0.3695 | 1.3977 |
1.500 | 0.095 | 15.79 | 1.310 | 0.4193 | 1.3478 |
1.500 | 0.109 | 13.76 | 1.282 | 0.4763 | 1.2908 |
1.500 | 0.120 | 12.50 | 1.260 | 0.5202 | 1.2469 |
1.500 | 0.134 | 11.19 | 1.232 | 0.5750 | 1.1921 |
1.500 | 0.148 | 10.14 | 1.204 | 0.6286 | 1.1385 |
1.750 | 0.035 | 50.00 | 1.680 | 0.1886 | 2.2167 |
1.750 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
1.750 | 0.065 | 26.92 | 1.620 | 0.3441 | 2.0612 |
1.750 | 0.083 | 21.08 | 1.584 | 0.4347 | 1.9706 |
1.750 | 0.095 | 18.42 | 1.560 | 0.4939 | 1.9113 |
1.750 | 0.109 | 16.06 | 1.532 | 0.5619 | 1.8433 |
1.750 | 0.120 | 14.58 | 1.510 | 0.6145 | 1.7908 |
1.750 | 0.134 | 13.06 | 1.482 | 0.6803 | 1.7250 |
1.750 | 0.148 | 11.82 | 1.454 | 0.7449 | 1.6604 |
1.750 | 0.165 | 10.61 | 1.420 | 0.8216 | 1.5837 |
2.000 | 0.035 | 57.14 | 1.930 | 0.2161 | 2.9255 |
2.000 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
2.000 | 0.065 | 30.77 | 1.870 | 0.3951 | 2.7465 |
2.000 | 0.083 | 24.10 | 1.834 | 0.4999 | 2.6417 |
2.000 | 0.095 | 21.05 | 1.810 | 0.5685 | 2.5730 |
2.000 | 0.109 | 18.35 | 1.782 | 0.6475 | 2.4941 |
2.000 | 0.120 | 16.67 | 1.760 | 0.7087 | 2.4328 |
2.000 | 0.134 | 14.93 | 1.732 | 0.7855 | 2.3561 |
2.000 | 0.148 | 13.51 | 1.704 | 0.8611 | 2.2805 |
2.000 | 0.165 | 12.12 | 1.670 | 0.9512 | 2.1904 |
EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
Ni 99.2 | 200 UNS N02200 |
2.4066 | NW 2200 | N-100M | BS 3072-3076 | - | - | - | - | - | - | - | НП-2 |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
We Manufacturer, Supplier and Exporter ASTM B161 Nickel Alloy 200 Pipes & Tubes for wide range of industries. Some of the examples are : – Paper & Pulp Industries, Architectural applications, Water Pipelines, Dairies & Breweries, Refineries, Power Plants, Constructions, Pharmaceuticals, Nuclear, Shipbuilding, Automobiles, Food & Beverages, Textiles, Petrochemicals, Chemicals, Railways, Sugar Mills etc.
