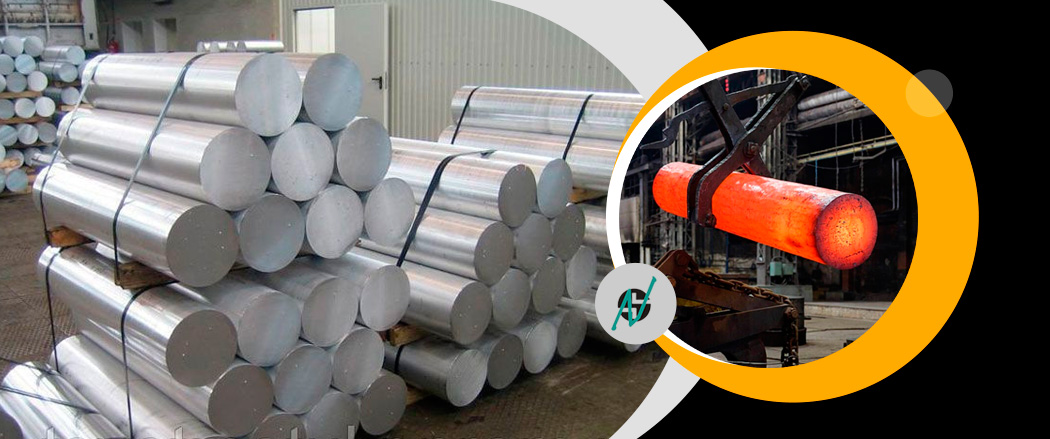

Due to its well-known reputation and ability to produce SS 304 Round Bars with accurate dimensions and clean installations, Nandini Steel is a highly sought-after vendor and producer. It is typically used in axes, drills, and other tools that call for a razor-sharp, long-lasting cutting edge. The carbon content of the material is reduced by further refinement to the appropriate level for producing these items. Because natural iron is so soft and rapidly rusts (oxidises), stainless steel UNS S30400 Flat Bars are also quite reactive. Additionally, the combination of these grades creates resistance to sulphuric acid and various reducing sellers in every competitive and reasonable circumstance. Additionally, the water-based coolant used in these pipelines and tubes must be of the highest calibre. water-soluble sulfo-chlorinated oil
The high strength that makes it useful in many applications also lowers its machinability, yet on average it machinates only marginally better than other alloy. It has a very modest amount of titanium content, usually around 0.5 percent. Bridges, water heaters, garage tanks, and reinforcement bars are examples of typical applications. In addition to having more resistance to chloride pitting, crevice corrosion, and strain corrosion cracking than is shown by utilising the typical collection steels, stainless steel WNR 1.4301 Square Bars also have a more austenitic-ferrite structure. Our product selection is highly regarded for its appropriate sizes and pleasant qualities.
Specification | ASTM A276 /ASME SA276, ASTM A479/ASME SA479 |
---|---|
Dimensions | EN, ASME, AISI, BS, JIS, DIN, ASTM, |
Round Bar Size | Thickness: 2 to 100 milimeter |
Tolerance | K11, H8, H12, K12, H13, H10, H9, K9, K10, H11, or as per need |
Form | Round, Rod, T-Bars, Channel Bars, Precision Ground Bars, Flat Bars, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Threaded, Hex (A/F), Rectangle, Half Round Bars, Profiles, Billet, Ingot, Forging, I/H Bars etc. |
Flat Bar Size | Dia: 3-~800 milimeter |
Width: 10 - 500 milimeter | |
Size of Angle Bar | 3 milimeter * 20 milimeter* 20 milimeter~12 milimeter* 100 milimeter* 100 milimeter |
Section Bar | 3.0 - 12.0 milimeter thk |
Channel Bar Sizes | 5 - 6 milimeter thk, 80 x 40 milimeter - 150 x 75 milimeter section |
Hollow Bar Sizes | 32 milimeter Outside Diameter x 16 milimeter Inside Diameter to 250 milimeter Outside Diameter x 200 milimeter Inside Diameter) |
Size of Rectangles | 34 x 30 milimeter - 295 x 1066 milimeter |
Billet Size | 1/2 - 495 milimeter Diameter |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Length Supply | 1 - 6 Meters Long or more than it |
Finish | Cold (bright) drawn, hot rolled, slit rolled edge, Polish, Bright, peeled, hot rolled annealed, Rough Turned, centreless ground, Centreless Ground, smooth turned, Grinding & Black |
Technique | Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
Condition | annealed, tempered, Hardened |
Processing | cutting to 650 milimeter |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
Diameter(Inch) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter2) | Bar Size |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Size in milimeter | Average Weight | |
KG/FT | KG/MTR | |
12 x 12 | 0.030 | 1.010 |
10 x 10 | 0.020 | 0.080 |
16 x 16 | 0.060 | 2.000 |
14 x 14 | 0.050 | 1.050 |
20 x 20 | 1.000 | 3.014 |
17 x 17 | 0.069 | 2.027 |
32 x 32 | 2.040 | 8.000 |
63 x 63 | 9.050 | 31.020 |
25 x 25 | 1.050 | 4.090 |
42 X 42 | 4.022 | 13.085 |
40 x 40 | 3.080 | 12.060 |
53 X 53 | 6.072 | 22.005 |
50 x 50 | 6.000 | 19.060 |
56 x 56 | 7.050 | 24.060 |
Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
1/8 | 0.125 3.175 | 0.042 / 0.062496 |
3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
1/4 | 0.25 6.35 | 0.167 / 0.248496 |
5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
3/8 | 0.375 9.525 | 0.376 / 0.559488 |
1/2 | 0.5 12.7 | 0.668 / 0.993984 |
7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
5/8 | 0.625 15.875 | 1.043 / 1.551984 |
3/4 | 0.75 19.05 | 1.502 / 2.234976 |
7/8 | 0.875 22.225 | 2.045 / 3.04296 |
13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
1 | 1 25.4 | 2.671 / 3.974448 |
1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
X5CrNi18-10 (1.4301) | 304 | 1.4301 X5CrNi18-9 |
SUS304 | X5CrNi18-10 Z5CN18-09 Z6CN18-09 Z7CN18-09 |
304S15 304S31 |
X5CrNi18-10 | 0Cr18Ni9 | 2333 2333-02 |
0H18N9 | 17240 | 725 | X5CrNi18-10S | 08KH18N10 |
Grade | C | Mn | Si | P | S | Cr | Ni |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We Manufacturer, Supplier and Exporter ASTM A276 Stainless Steel 304 Round Bars for wide range of industries. Some of the examples are : – Sugar Mills, Dairies & Breweries, Pharmaceuticals, Power Plants, Water Pipelines, Chemicals, Automobiles, Paper & Pulp Industries, Refineries, Textiles, Constructions, Nuclear, Shipbuilding, Petrochemicals, Architectural applications, Railways, Food & Beverages etc.
