Stainless Steel 904L Pipes & Tubes Stockist in India

AISI 904L Seamless Tubes, 904L Stainless Steel Welded Tubes, SUS 904L Welded Pipes Stockists in Mumbai, India.

Table of Contents

What is 904L Stainless Steel Pipes & Tubes ?
Stainless Steel 904L Pipes & Tubes Specification
SS 904L Pipe & Tube Manufacturing Standards
Different Stainless Steel 904L Pipes & Tubes Types
SS 904L Pipes & Tubes Equivalent Material Grade
Stainless Steel 904L Pipe Size Chart
Stainless Steel 904L Tubing Dimensions
Chemical Composition of SS 904L Pipes & Tubes
Mechanical Properties of SS 904L Pipes & Tubes
Stainless Steel 904L Pipes & Tubes Sizes in Stock
Available Stock of Stainless Steel 904L Pipes & Tubes
Industries & Applications

SS 904L Pipes & Tubes, which are frequently used in the production of boilers and vessels for low pressure applications, are well-known for being exported and sold by Nandini Steel. They are particularly used in various utility businesses, such as oil and gas, paper, breweries, cement, sugar, and oil mills, mining, shipbuilding, and steel plants. Additionally, Stainless Steel UNS N08904 Seamless Pipes have been meeting the demands of the automotive, shipbuilding, oil and gasoline, power flora, and related industries. They are also primarily utilised for moving water, equipment parts, liquid petroleum products, oil, and gasoline across normally quite long distances. It has a number of fantastic qualities to offer, like being completely tested, cost-effective, nicely accredited, and more. Welded Tubes in Stainless Steel DIN 1.4539 are produced by

These tubes' ends are smooth and vertical to their longitudinal axis. These items, which can be made of molybdenum-alloyed metal and the second-most commonplace austenite metal, need a high level of skill to produce. The seamless method will be used to create 904L stainless steel EFW pipes, which will either be cold finished or warm finished depending on the specification. They are being created using materials that are rather good at withstanding increased temperatures and constant pressures.

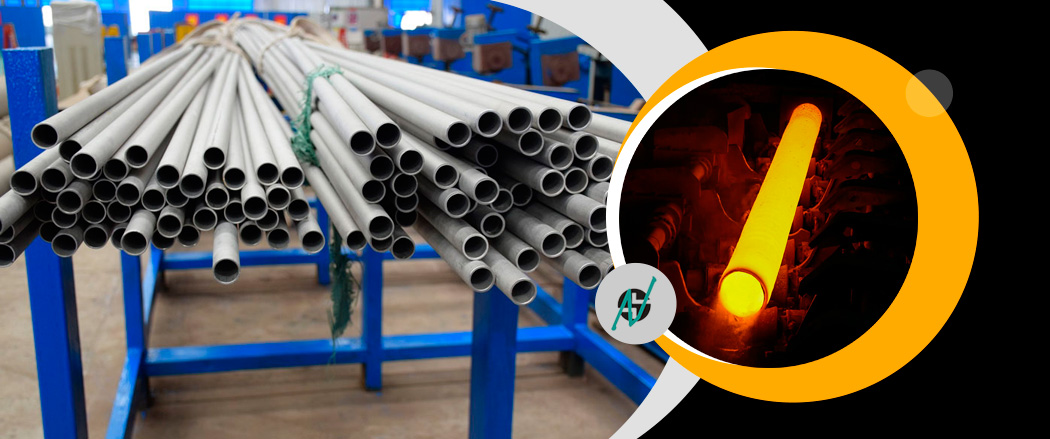

Stainless Steel 904L Pipes & Tubes

Jindal 904L Stainless Steel Pipe, ASTM A312 904L Seamless Pipes, SS 904L Industrial Pipes, 904L Stainless Steel EFW Pipes Supplier in Mumbai, India.

Because of its composition, which includes 8 percent nickel and 18 percent chromium, this well-regarded alloy offers good welding and forming qualities as well as strong corrosion strength and resistance. These Alloy 904L ERW Tubes are available from us in a wide range of premium materials, making them particularly suitable for use in boilers, heat exchangers, general service, and the food industry.
Pipes & Tubes
AISI 904L, UNS N08904, 1.4539, EN X1NiCrMoCu25-20-5, SUS904L, AFNOR Z2NCDU25-20, BS 904S13, SS 2562, PN 00H22N24M4TCu PIPES & TUBES STOCKIST.

Stainless Steel 904L Pipes & Tubes Specification

Standards
  • ASTM A213 / ASME SA213
  • ASTM A249 / ASME SA249
  • ASTM A269 / ASME SA269
  • ASTM A554 / ASME SA554
  • ASTM A270 / ASME SA270
  • ASTM A358 / ASME SA358
  • ASTM A312 / ASME SA312
Specialized in Large Diameter Pipe
Pipe size 5.0 milimeter - 1219.2 milimeter
Pipe Finish AP (Annealed & Pickled), Polished, MF, BA (Bright & Annealed)
Schedule SCH10, SCH5, STD, SCH40, SCH160, SCH80
Length Double Random, Single Random & Cut Length.
Pipe Form Square, Round, Rectangular, Hollow, Straight, Hydraulic Pipes, Etc.
Pipe End Beveled End, Plain End, Threaded.
Material Test Certificates (MTC) EN 10204 3.1
EN 10204 3.2
Marking All Pipes are marked as follows: Grade, Standard, Thickness, OD, Heat No. (Or according to the customer’s request.), Length
Swg & Bwg 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg.
Tube Size 6.35 milimeter Outside Diameter To 152 milimeter Outside Diameter
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Wall Thickness 0.020" to 0.220", (special wall thicknesses available)
Tube Type ERW, Seamless, Welded, EFW, Fabricated
Tube Form Boiler, Straight, Rectangular, Round, Coil, Square, Hydraulic, LSAW, Hollow,‘U’ bent Tubes Etc.

SS 904L Pipe & Tube Manufacturing Standards

ASTM ASME Description
ASTM A312 SA 312 Seamless and straight-seam welded austenitic pipe
ASTM A358 SA 358 Electric fusion welded (EFW) austenitic pipe, up to 8 inch
ASTM A213 SA 213 Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A249 SA 249 Welded Austenitic Steel Boiler, Superheater, Condenser and Heat Exchanger, Tubes
ASTM A269 SA 269 Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A409 SA 409 Welded Large Diameter Austenitic Steel Pipe
ASTM A376 SA 376 High Temperature SS Seamless Austenitic Steel Pipe
ASTM A813 SA 813 Single-seam, single / double welded austenitic pipe
ASTM A814 SA 814 Cold-worked welded austenitic pipe
ASTM A554 SA 554 Stainless Steel Welded Stainless Steel Mechanical Tubing and SS Square Pipe
ASTM A511 SA 511 Stainless Steel Seamless Mechanical Tubing
ASTM A632 SA 632 Small-Diameter Seamless and Welded Austenitic Stainless Steel Tubing
ASTM A688 SA 688 Austenitic Stainless Steel Feedwater Heater Tubes, Welded
ASTM A778 SA 778 Welded, Unannealed Austenitic Stainless Steel Pipe/ Tube

Different Stainless Steel 904L Pipes & Tubes Types

Stainless Steel 904L Seamless Pipe
Stainless Steel 904L Seamless Pipe
Stainless Steel 904L Welded Pipe
Stainless Steel 904L Welded Pipe
Stainless Steel 904L ERW Pipe
Stainless Steel 904L ERW Pipe
Stainless Steel 904L EFW Pipe
Stainless Steel 904L EFW Pipe
Stainless Steel 904L Seamless Tubes
Stainless Steel 904L Seamless Tubes
Stainless Steel 904L Welded Tubes
Stainless Steel 904L Welded Tubes

SS 904L Pipes & Tubes Equivalent Material Grade

STANDARD WERKSTOFF NR. UNS JIS KS BS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L STS 317J5L 904S13 Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Stainless Steel 904L Pipe Size Chart

PIPE SIZE OD IN INCHES A.S.A. Pipe Schedules
5s 5 10s 10 20 30 40s & Std. 40 60 80s & E.H. 80 100 120 140 160 DBL E.H.
1/8 .405 .035.1383 .049.1863 .049.1863 .068.2447 068.2447 0.95.3145 0.95.3145
1/4 .540 .049.2570 .065.3297 .065.3297 .088.4248 088.4248 .119.5351 .119.5351
3/8 .675 .049.3276 .065.4235 .065.4235 .091.5676 .091.5676 .126.7338 .126.7338
1/2 .840 .065.5383 .065.5383 .083.6710 .083.6710 .109.8510 .109.8510 .1471.088 .1471.088 .1871.304 .2941.714
3/4 1.050 .065.6838 .065.6838 .083.8572 .083.8572 .1131.131 .1131.131 .1541.474 .1541.474 .2181.937 .3082.441
1 1.315 .065.8678 .065.8678 .1091.404 .1091.404 .1331.679 .1331.679 .1792.172 .1792.172 .2502.844 .3583.659
1-1/4 1.660 .0651.107 .0651.107 .1091.806 .1091.806 .1402.273 .1402.273 .1912.997 .1912.997 .2503.765 .3825.214
1-1/2 1.900 .0651.274 .0651.274 .1092.085 .1092.085 .1452.718 .1452.718 .2003.631 .2003.631 .2814.859 .4006.408
2 2.375 .0651.604 .0651.604 .1092.638 .1092.638 .1543.653 .1543.653 .2185.022 .2185.022 .3437.444 .4369.029
2-1/2 2.875 .0832.475 .0832.475 .1203.531 .1203.531 .2035.793 .2035.793 .2767.661 .2767.661 .37510.01 .55213.70
3 3.500 .0833.029 .0833.029 .1204.332 .1204.332 .2167.576 .2167.576 .30010.25 .30010.25 .43714.32 .60018.58
3-1/2 4.000 .0833.472 .0833.472 .1204.973 .1204.973 .2269.109 .2269.109 .31812.51 .31812.51 .63622.85
4 4.500 .0833.915 .0833.915 .1205.613 .1205.613 .23710.79 .23710.79 .28112.66 .33714.98 .33714.98 .43719.01 .53122.51 .67427.54
4-1/2 5.000 .24712.53 .35517.61 .71032.53
5 5.563 .1096.349 .1096.349 .1347.770 .1347.770 .25814.62 .25814.62 .37520.78 .37520.78 .50027.04 .62532.96 .75038.55
6 6.625 .1097.585 .1097.585 .1349.290 .1349.290 .28018.97 .28018.97 .43228.57 .43228.57 .56236.39 .71845.30 .86453.16
7 7.625 .30123.57 .50038.05 .87563.08

Stainless Steel 904L Tubing Dimensions

Size
OD, Inches		 BW
Ga.		 Wall
Dec-In.		 ID Weight
Lbs/Ft.
1/8 22 0.028 0.069 0.0290
20 0.035 0.055 0.0336
3/16 22 0.028 0.131 0.0478
1/4 25 0.020 0.210 0.0491
22 0.028 0.194 0.0664
21 0.032 0.187 0.0745
20 0.035 0.180 0.0804
18 0.049 0.152 0.1052
16 0.065 0.120 0.1284
5/16 20 0.035 0.242 0.1039
18 0.049 0.214 0.1382
16 0.065 0.182 0.1722
3/8 22 0.028 0.319 0.1038
20 0.035 0.305 0.1271
18 0.049 0.277 0.1706
16 0.065 0.245 0.2152
7/16 18 0.049 0.340 0.2036
1/2 25 0.020 0.460 0.1025
20 0.035 0.430 0.1738
18 0.049 0.402 0.2360
16 0.065 0.370 0.3020
5/8 20 0.035 0.555 0.2205
18 0.049 0.527 0.3014
16 0.065 0.495 0.3888
3/4 20 0.035 0.680 0.2673
18 0.049 0.652 0.3668
16 0.065 0.620 0.4755
14 0.083 0.584 0.5913
7/8 18 0.049 0.777 0.4323
16 0.065 0.745 0.5623
11 0.120 0.635 0.9676
1 20 0.035 0.930 0.3607
18 0.049 0.902 0.4977
16 0.065 0.870 0.6491
14 0.083 0.834 0.8129
11 0.120 0.760 1.1278
1-1/4 11 0.120 1.010 1.4480
OD inches Ave. Wall inches D/t Ratio ID inches Tubing Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1213
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904
Pipes & Tubes
Contact Nandini Steel for you all requirement of Stainless Steel 904L Pipes & Tubes in Saudi Arabia, Russia, Kuwait, Bahrain, South Korea, South Africa, UAE, USA, Morocco, Malaysia.
Stockist of SS 904L Seamless Pipes in India, 904L Seamless Tubing in various sizes.
ENQUIRY NOW

Worldwide equivalents of grade 904L

EU
EN 		USA
-		 France
AFNOR		 England
BS		 Sweden
SS		 Poland
PN
X1NiCrMoCu25-20-5 904L
N08904 		Z2NCDU25-20 904S13 2562 00H22N24M4TCu

Chemical Composition of Stainless Steel 904L Pipes & Tubes

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00

Mechanical Properties of Stainless Steel 904L Pipes & Tubes

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1510 °C (2750 °F) Psi – 75,000 , MPa – 485 Psi – 40,000 , MPa – 275 20 %

You May Also Like Buy These Grades :


We offer These SS 904L Pipes & Tubes as per ASTM, ASME, BS, DIN, EN.
REQUEST A QUOTE

Available Stock of Stainless Steel 904L Pipes & Tubes

  • ASTM A312 SS 904L Piping Manufacturer
  • 904L Stainless Steel Piping
  • EN X1NiCrMoCu25-20-5 SMLS Pipe
  • Jindal 904L Stainless Steel Piping
  • Stainless Steel BS 904S13 ERW Tubes
  • AFNOR Z2NCDU25-20 Seamless Tubes
  • PN 00H22N24M4TCu Thin Wall Pipe
  • SS 2562 Polished Pipe
  • ASTM A213 904L SS Condenser Tubes
  • Stainless Steel 904L EP Pipe
  • AISI 904L SS Schedule 80 Pipe
  • 904L Stainless Steel Instrumentation Tubing

Industries & Applications Where Our Stainless Steel 904L Pipes & Tubes is Used

We Manufacturer, Supplier and Exporter ASTM A312 / A213 Stainless Steel 904L Pipes & Tubes for wide range of industries. Some of the examples are : – Paper & Pulp Industries, Sugar Mills, Power Plants, Automobiles, Refineries, Constructions, Textiles, Pharmaceuticals, Architectural applications, Chemicals, Nuclear, Shipbuilding, Food & Beverages, Dairies & Breweries, Water Pipelines, Railways, Petrochemicals etc.

Oil & Gas
0%
Chemicals
0%
Shipbuilding
0%
Power Plants
0%
Paper & Pulp Industries
0%
Railways
0%
Contact Nandini Steel for you all requirement of

Industrial Products in Russia, Bahrain, South Korea, Morocco, South Africa, UAE, Kuwait, Malaysia, USA, Saudi Arabia.

Start Your PROJECTS

Address

25, Dreamland Building, 601, 6th Floor,
Mama Parmanand Marg, Operahouse,
Charni Road, Girgaon, Mumbai - 400004, India

Phone

E-Mail

Copyright © 2022 Nandini Steel. All Rights Reserved
