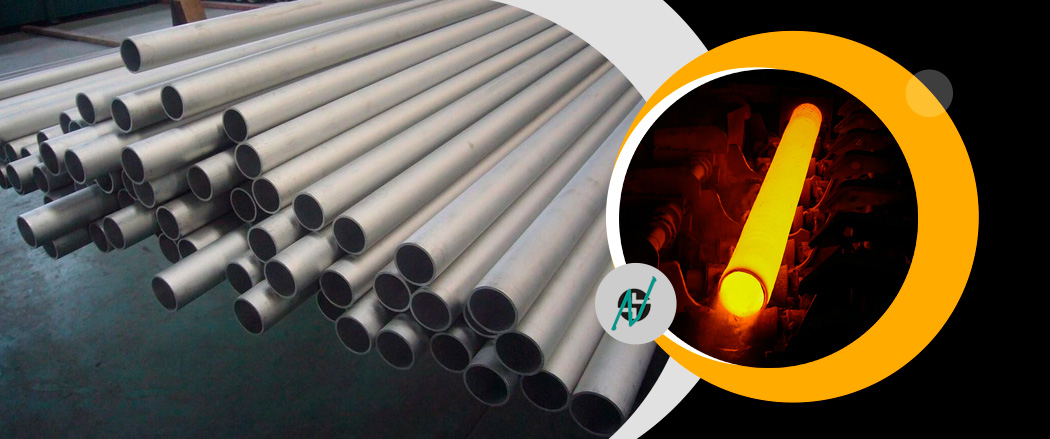

It is well-known that Nandini Steel exports and trades SS 410 Pipes & Tubes, also known as electrochemical or electrolytic sprucing. They are made to increase the area of the wall between the two fluids and minimise the resistance to fluid float via the exchanger in order to be as efficient as possible. The installation of fins or corrugations in one or both directions, which grow towards the floor and may channel fluid float or cause turbulence, can also impede performance. Seawater coolers, condensers, evaporators, warmers, and reheaters are just a few examples of the warmth exchangers that can be used with stainless steel UNS S41000 instrumentation pipes.
In oil refineries and other large chemical processes, it is the most prevalent type of heat exchanger and is preferred for higher-pressure applications. Additionally, stainless steel 410 high pressure tubes are widely used in sewage treatment, area heating, power generation, chemical and petrochemical processing, oil refineries, and chemical and petrochemical plants. It is an expanded hole cylinder used to cover electrical or optical connections and wires or to transfer fluids (beverages or gases).
Standards |
|
---|---|
Specialized in | Large Diameter Pipe |
Pipe size | 5.0 milimeter - 1219.2 milimeter |
Pipe Finish | AP (Annealed & Pickled), Polished, MF, BA (Bright & Annealed) |
Schedule | SCH10, SCH5, STD, SCH40, SCH160, SCH80 |
Length | Double Random, Single Random & Cut Length. |
Pipe Form | Square, Round, Rectangular, Hollow, Straight, Hydraulic Pipes, Etc. |
Pipe End | Beveled End, Plain End, Threaded. |
Material Test Certificates (MTC) | EN 10204 3.1 EN 10204 3.2 |
Marking | All Pipes are marked as follows: Grade, Standard, Thickness, OD, Heat No. (Or according to the customer’s request.), Length |
Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg. |
Tube Size | 6.35 milimeter Outside Diameter To 152 milimeter Outside Diameter |
Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Wall Thickness | 0.020" to 0.220", (special wall thicknesses available) |
Tube Type | ERW, Seamless, Welded, EFW, Fabricated |
Tube Form | Boiler, Straight, Rectangular, Round, Coil, Square, Hydraulic, LSAW, Hollow,‘U’ bent Tubes Etc. |
ASTM | ASME | Description |
---|---|---|
ASTM A312 | SA 312 | Seamless and straight-seam welded austenitic pipe |
ASTM A358 | SA 358 | Electric fusion welded (EFW) austenitic pipe, up to 8 inch |
ASTM A213 | SA 213 | Seamless and Welded Austenitic Stainless Steel Tubing |
ASTM A249 | SA 249 | Welded Austenitic Steel Boiler, Superheater, Condenser and Heat Exchanger, Tubes |
ASTM A269 | SA 269 | Seamless and Welded Austenitic Stainless Steel Tubing |
ASTM A409 | SA 409 | Welded Large Diameter Austenitic Steel Pipe |
ASTM A376 | SA 376 | High Temperature SS Seamless Austenitic Steel Pipe |
ASTM A813 | SA 813 | Single-seam, single / double welded austenitic pipe |
ASTM A814 | SA 814 | Cold-worked welded austenitic pipe |
ASTM A554 | SA 554 | Stainless Steel Welded Stainless Steel Mechanical Tubing and SS Square Pipe |
ASTM A511 | SA 511 | Stainless Steel Seamless Mechanical Tubing |
ASTM A632 | SA 632 | Small-Diameter Seamless and Welded Austenitic Stainless Steel Tubing |
ASTM A688 | SA 688 | Austenitic Stainless Steel Feedwater Heater Tubes, Welded |
ASTM A778 | SA 778 | Welded, Unannealed Austenitic Stainless Steel Pipe/ Tube |
STANDARD | WERKSTOFF NR. | UNS | JIS |
SS 410 | 1.4006 | S41000 | SUS 410 |
PIPE SIZE | OD IN INCHES | A.S.A. Pipe Schedules | |||||||||||||||
5s | 5 | 10s | 10 | 20 | 30 | 40s & Std. | 40 | 60 | 80s & E.H. | 80 | 100 | 120 | 140 | 160 | DBL E.H. | ||
1/8 | .405 | .035.1383 | .049.1863 | .049.1863 | .068.2447 | 068.2447 | 0.95.3145 | 0.95.3145 | |||||||||
1/4 | .540 | .049.2570 | .065.3297 | .065.3297 | .088.4248 | 088.4248 | .119.5351 | .119.5351 | |||||||||
3/8 | .675 | .049.3276 | .065.4235 | .065.4235 | .091.5676 | .091.5676 | .126.7338 | .126.7338 | |||||||||
1/2 | .840 | .065.5383 | .065.5383 | .083.6710 | .083.6710 | .109.8510 | .109.8510 | .1471.088 | .1471.088 | .1871.304 | .2941.714 | ||||||
3/4 | 1.050 | .065.6838 | .065.6838 | .083.8572 | .083.8572 | .1131.131 | .1131.131 | .1541.474 | .1541.474 | .2181.937 | .3082.441 | ||||||
1 | 1.315 | .065.8678 | .065.8678 | .1091.404 | .1091.404 | .1331.679 | .1331.679 | .1792.172 | .1792.172 | .2502.844 | .3583.659 | ||||||
1-1/4 | 1.660 | .0651.107 | .0651.107 | .1091.806 | .1091.806 | .1402.273 | .1402.273 | .1912.997 | .1912.997 | .2503.765 | .3825.214 | ||||||
1-1/2 | 1.900 | .0651.274 | .0651.274 | .1092.085 | .1092.085 | .1452.718 | .1452.718 | .2003.631 | .2003.631 | .2814.859 | .4006.408 | ||||||
2 | 2.375 | .0651.604 | .0651.604 | .1092.638 | .1092.638 | .1543.653 | .1543.653 | .2185.022 | .2185.022 | .3437.444 | .4369.029 | ||||||
2-1/2 | 2.875 | .0832.475 | .0832.475 | .1203.531 | .1203.531 | .2035.793 | .2035.793 | .2767.661 | .2767.661 | .37510.01 | .55213.70 | ||||||
3 | 3.500 | .0833.029 | .0833.029 | .1204.332 | .1204.332 | .2167.576 | .2167.576 | .30010.25 | .30010.25 | .43714.32 | .60018.58 | ||||||
3-1/2 | 4.000 | .0833.472 | .0833.472 | .1204.973 | .1204.973 | .2269.109 | .2269.109 | .31812.51 | .31812.51 | .63622.85 | |||||||
4 | 4.500 | .0833.915 | .0833.915 | .1205.613 | .1205.613 | .23710.79 | .23710.79 | .28112.66 | .33714.98 | .33714.98 | .43719.01 | .53122.51 | .67427.54 | ||||
4-1/2 | 5.000 | .24712.53 | .35517.61 | .71032.53 | |||||||||||||
5 | 5.563 | .1096.349 | .1096.349 | .1347.770 | .1347.770 | .25814.62 | .25814.62 | .37520.78 | .37520.78 | .50027.04 | .62532.96 | .75038.55 | |||||
6 | 6.625 | .1097.585 | .1097.585 | .1349.290 | .1349.290 | .28018.97 | .28018.97 | .43228.57 | .43228.57 | .56236.39 | .71845.30 | .86453.16 | |||||
7 | 7.625 | .30123.57 | .50038.05 | .87563.08 |
Size OD, Inches |
BW Ga. |
Wall Dec-In. |
ID | Weight Lbs/Ft. |
1/8 | 22 | 0.028 | 0.069 | 0.0290 |
20 | 0.035 | 0.055 | 0.0336 | |
3/16 | 22 | 0.028 | 0.131 | 0.0478 |
1/4 | 25 | 0.020 | 0.210 | 0.0491 |
22 | 0.028 | 0.194 | 0.0664 | |
21 | 0.032 | 0.187 | 0.0745 | |
20 | 0.035 | 0.180 | 0.0804 | |
18 | 0.049 | 0.152 | 0.1052 | |
16 | 0.065 | 0.120 | 0.1284 | |
5/16 | 20 | 0.035 | 0.242 | 0.1039 |
18 | 0.049 | 0.214 | 0.1382 | |
16 | 0.065 | 0.182 | 0.1722 | |
3/8 | 22 | 0.028 | 0.319 | 0.1038 |
20 | 0.035 | 0.305 | 0.1271 | |
18 | 0.049 | 0.277 | 0.1706 | |
16 | 0.065 | 0.245 | 0.2152 | |
7/16 | 18 | 0.049 | 0.340 | 0.2036 |
1/2 | 25 | 0.020 | 0.460 | 0.1025 |
20 | 0.035 | 0.430 | 0.1738 | |
18 | 0.049 | 0.402 | 0.2360 | |
16 | 0.065 | 0.370 | 0.3020 | |
5/8 | 20 | 0.035 | 0.555 | 0.2205 |
18 | 0.049 | 0.527 | 0.3014 | |
16 | 0.065 | 0.495 | 0.3888 | |
3/4 | 20 | 0.035 | 0.680 | 0.2673 |
18 | 0.049 | 0.652 | 0.3668 | |
16 | 0.065 | 0.620 | 0.4755 | |
14 | 0.083 | 0.584 | 0.5913 | |
7/8 | 18 | 0.049 | 0.777 | 0.4323 |
16 | 0.065 | 0.745 | 0.5623 | |
11 | 0.120 | 0.635 | 0.9676 | |
1 | 20 | 0.035 | 0.930 | 0.3607 |
18 | 0.049 | 0.902 | 0.4977 | |
16 | 0.065 | 0.870 | 0.6491 | |
14 | 0.083 | 0.834 | 0.8129 | |
11 | 0.120 | 0.760 | 1.1278 | |
1-1/4 | 11 | 0.120 | 1.010 | 1.4480 |
OD inches | Ave. Wall inches | D/t Ratio | ID inches | Tubing Cross Sectional Area (in2) | Internal Area (in2) |
---|---|---|---|---|---|
0.250 | 0.020 | 12.50 | 0.210 | 0.0145 | 0.0346 |
0.250 | 0.028 | 8.93 | 0.194 | 0.0195 | 0.0296 |
0.250 | 0.035 | 7.14 | 0.180 | 0.0236 | 0.0254 |
0.250 | 0.049 | 5.10 | 0.152 | 0.0309 | 0.0181 |
0.250 | 0.065 | 3.85 | 0.120 | 0.0378 | 0.0113 |
0.375 | 0.020 | 18.75 | 0.335 | 0.0223 | 0.0881 |
0.375 | 0.028 | 13.39 | 0.319 | 0.0305 | 0.0799 |
0.375 | 0.035 | 10.71 | 0.305 | 0.0374 | 0.0731 |
0.375 | 0.049 | 7.65 | 0.277 | 0.0502 | 0.0603 |
0.375 | 0.065 | 5.77 | 0.245 | 0.0633 | 0.0471 |
0.500 | 0.020 | 25.00 | 0.460 | 0.0302 | 0.1662 |
0.500 | 0.028 | 17.86 | 0.444 | 0.0415 | 0.1548 |
0.500 | 0.035 | 14.29 | 0.430 | 0.0511 | 0.1452 |
0.500 | 0.049 | 10.20 | 0.402 | 0.0694 | 0.1213 |
0.500 | 0.065 | 7.69 | 0.370 | 0.0888 | 0.1075 |
0.500 | 0.083 | 6.02 | 0.334 | 0.1087 | 0.0876 |
0.625 | 0.020 | 31.25 | 0.585 | 0.0380 | 0.2688 |
0.625 | 0.028 | 22.32 | 0.569 | 0.0525 | 0.2543 |
0.625 | 0.035 | 17.86 | 0.555 | 0.0649 | 0.2419 |
0.625 | 0.049 | 12.76 | 0.527 | 0.0887 | 0.2181 |
0.625 | 0.065 | 9.62 | 0.495 | 0.1144 | 0.1924 |
0.625 | 0.083 | 7.53 | 0.459 | 0.1413 | 0.1655 |
0.625 | 0.095 | 6.58 | 0.435 | 0.1582 | 0.1486 |
0.625 | 0.109 | 5.73 | 0.407 | 0.1767 | 0.1301 |
0.750 | 0.028 | 26.79 | 0.694 | 0.0635 | 0.3783 |
0.750 | 0.035 | 21.43 | 0.680 | 0.0786 | 0.3632 |
0.750 | 0.049 | 15.31 | 0.652 | 0.1079 | 0.3339 |
0.750 | 0.065 | 11.54 | 0.620 | 0.1399 | 0.3019 |
0.750 | 0.083 | 9.04 | 0.584 | 0.1739 | 0.2679 |
0.750 | 0.095 | 7.89 | 0.560 | 0.1955 | 0.2463 |
0.750 | 0.109 | 6.88 | 0.532 | 0.2195 | 0.2223 |
0.750 | 0.120 | 6.25 | 0.510 | 0.2375 | 0.2043 |
0.875 | 0.020 | 43.75 | 0.835 | 0.0537 | 0.5476 |
0.875 | 0.028 | 31.25 | 0.819 | 0.0745 | 0.5268 |
0.875 | 0.035 | 25.00 | 0.805 | 0.0924 | 0.5090 |
0.875 | 0.049 | 17.86 | 0.777 | 0.1272 | 0.4742 |
0.875 | 0.065 | 13.46 | 0.745 | 0.1654 | 0.4359 |
0.875 | 0.083 | 10.54 | 0.709 | 0.2065 | 0.3948 |
0.875 | 0.095 | 9.21 | 0.685 | 0.2328 | 0.3685 |
0.875 | 0.109 | 8.03 | 0.657 | 0.2623 | 0.3390 |
0.875 | 0.120 | 7.29 | 0.635 | 0.2846 | 0.3167 |
1.000 | 0.028 | 35.71 | 0.944 | 0.0855 | 0.6999 |
1.000 | 0.035 | 28.57 | 0.930 | 0.1061 | 0.6793 |
1.000 | 0.049 | 20.41 | 0.902 | 0.1464 | 0.6390 |
1.000 | 0.065 | 15.38 | 0.870 | 0.1909 | 0.5945 |
1.000 | 0.083 | 12.05 | 0.834 | 0.2391 | 0.5463 |
1.000 | 0.095 | 10.53 | 0.810 | 0.2701 | 0.5153 |
1.000 | 0.109 | 9.17 | 0.782 | 0.3051 | 0.4803 |
1.000 | 0.120 | 8.33 | 0.760 | 0.3318 | 0.4536 |
1.000 | 0.134 | 7.46 | 0.732 | 0.3646 | 0.4208 |
1.250 | 0.035 | 35.71 | 1.180 | 0.1336 | 1.0936 |
1.250 | 0.049 | 25.51 | 1.152 | 0.1849 | 1.0423 |
1.250 | 0.065 | 19.23 | 1.120 | 0.2420 | 0.9852 |
1.250 | 0.083 | 15.06 | 1.084 | 0.3043 | 0.9229 |
1.250 | 0.095 | 13.16 | 1.060 | 0.3447 | 0.8825 |
1.250 | 0.109 | 11.47 | 1.032 | 0.3907 | 0.8365 |
1.250 | 0.120 | 10.42 | 1.010 | 0.4260 | 0.8012 |
1.250 | 0.134 | 9.33 | 0.982 | 0.4698 | 0.7574 |
1.500 | 0.035 | 42.86 | 1.430 | 0.1611 | 1.6061 |
1.500 | 0.049 | 30.61 | 1.402 | 0.2234 | 1.5438 |
1.500 | 0.065 | 23.08 | 1.370 | 0.2930 | 1.4741 |
1.500 | 0.083 | 18.07 | 1.334 | 0.3695 | 1.3977 |
1.500 | 0.095 | 15.79 | 1.310 | 0.4193 | 1.3478 |
1.500 | 0.109 | 13.76 | 1.282 | 0.4763 | 1.2908 |
1.500 | 0.120 | 12.50 | 1.260 | 0.5202 | 1.2469 |
1.500 | 0.134 | 11.19 | 1.232 | 0.5750 | 1.1921 |
1.500 | 0.148 | 10.14 | 1.204 | 0.6286 | 1.1385 |
1.750 | 0.035 | 50.00 | 1.680 | 0.1886 | 2.2167 |
1.750 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
1.750 | 0.065 | 26.92 | 1.620 | 0.3441 | 2.0612 |
1.750 | 0.083 | 21.08 | 1.584 | 0.4347 | 1.9706 |
1.750 | 0.095 | 18.42 | 1.560 | 0.4939 | 1.9113 |
1.750 | 0.109 | 16.06 | 1.532 | 0.5619 | 1.8433 |
1.750 | 0.120 | 14.58 | 1.510 | 0.6145 | 1.7908 |
1.750 | 0.134 | 13.06 | 1.482 | 0.6803 | 1.7250 |
1.750 | 0.148 | 11.82 | 1.454 | 0.7449 | 1.6604 |
1.750 | 0.165 | 10.61 | 1.420 | 0.8216 | 1.5837 |
2.000 | 0.035 | 57.14 | 1.930 | 0.2161 | 2.9255 |
2.000 | 0.049 | 40.82 | 1.902 | 0.3003 | 2.8413 |
2.000 | 0.065 | 30.77 | 1.870 | 0.3951 | 2.7465 |
2.000 | 0.083 | 24.10 | 1.834 | 0.4999 | 2.6417 |
2.000 | 0.095 | 21.05 | 1.810 | 0.5685 | 2.5730 |
2.000 | 0.109 | 18.35 | 1.782 | 0.6475 | 2.4941 |
2.000 | 0.120 | 16.67 | 1.760 | 0.7087 | 2.4328 |
2.000 | 0.134 | 14.93 | 1.732 | 0.7855 | 2.3561 |
2.000 | 0.148 | 13.51 | 1.704 | 0.8611 | 2.2805 |
2.000 | 0.165 | 12.12 | 1.670 | 0.9512 | 2.1904 |
EU EN |
USA - |
Sweden SS |
France AFNOR |
England BS |
Poland PN |
Russia GOST |
X12Cr13 (1.4006) | 410 | 2302 | Z10C13 | 410S21 | 1H13 | 12KH13 15KH13L |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
410 | 0.15 max | 5.5-7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | – | 0.3-0.5 | – |
Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
410 | 65 (450) | 30 (205) | 20 | 217 | 96 |
We Manufacturer, Supplier and Exporter ASTM A312 / A213 Stainless Steel 410 Pipes & Tubes for wide range of industries. Some of the examples are : – Pharmaceuticals, Sugar Mills, Dairies & Breweries, Constructions, Railways, Automobiles, Textiles, Power Plants, Chemicals, Refineries, Architectural applications, Food & Beverages, Nuclear, Shipbuilding, Petrochemicals, Paper & Pulp Industries, Water Pipelines etc.
