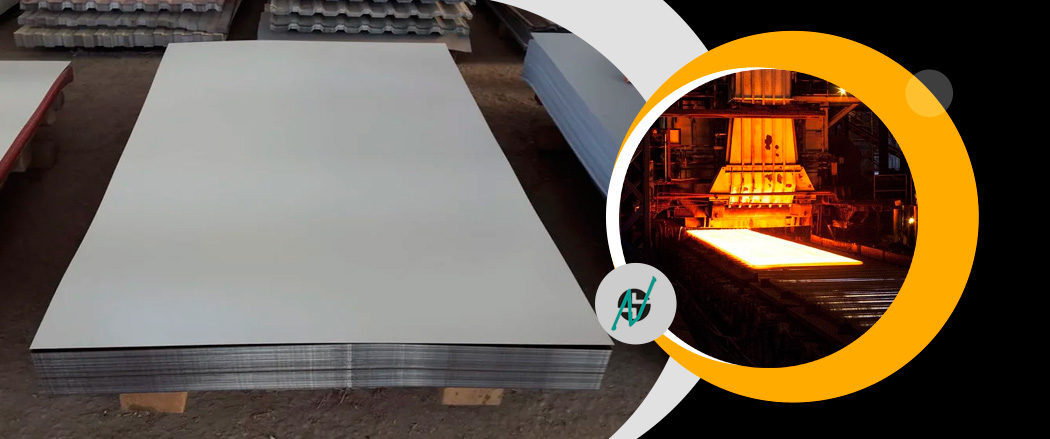

Hastelloy Alloy C276 Sheets, which are widely utilised in the pipe fitting applications of the oil, gasoline, and petrochemical sectors, are distributed by Nandini Steel, a reputable company. It is acknowledged for its low maintenance requirements, quality assurance, longer carrier life, corrosion resistance, abrasion resistance, chemical resistance, and other features. The brilliance we've demonstrated in this field recently is the fruit of our tireless efforts to provide these sheets of the highest quality for our clients. They have gained a strong reputation among most of the clients for their exceptional features, which include strong construction, specific engineering, clean installation, dimensional precision, durability, and others. Additionally, the Hastelloy Alloy UNS N10276 Sheets we offer are top-notch, strong, dependable, surprisingly effective, easy to instal, and a lot more.
Furthermore, we have a look at the excellent of such sheets at our give up following stringent parameters. Our enterprise is engaged on this area, we're imparting an outstanding excellent of such sheets, which can be synthetic through our professionals the usage of excellent approved material with the assist of contemporary-day era according with set requirements of industry. The huge variety of such Hastelloy Alloy WNR 2.4819 Sheets which we're presenting to our customers is rather preferred through them for its easy end, dimensional accuracy, excessive tensile strength, and lengthy life. It is understood for Precision engineered, Light weight, Corrosion resistance, Structured appropriately, Intricate detailing, Economical, and more.
Specifications | ASTM B575 / ASME SB575 |
---|---|
Dimension Standard | AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
Size Range | Cold rolled Sheet 0.5-6.4 mm Hot rolled Sheet 3.0–10.0 mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Thickness | 4mm-100mm |
Tolerances (width / thickness) | EN 10258/ DIN 59381) EN 10151 EN 10088 |
Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin etc. |
Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Surface Finish | Definition | Application |
---|---|---|
2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
---|---|---|---|---|---|---|
inches | mm | lbs/ft² | kg/m² | lbs | kg | |
0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
0.18 | 2.88 | - | - | 1.44 |
0.20 | 3.20 | - | - | 1.60 |
0.22 | 3.52 | - | - | 1.76 |
0.24 | 3.84 | - | - | 1.92 |
0.27 | 4.32 | - | - | 2.16 |
0.28 | 4.48 | - | - | 2.24 |
0.32 | 5.12 | - | - | 2.56 |
0.38 | 6.08 | - | - | 3.04 |
0.44 | 7.04 | 11.00 | - | 3.52 |
0.50 | 8.00 | 12.50 | - | 4.00 |
0.56 | 8.96 | 14.00 | - | 4.48 |
0.63 | 10.08 | 15.75 | - | 5.04 |
0.75 | 12.00 | 18.75 | - | 6.00 |
0.88 | 14.08 | 22.00 | - | 7.04 |
1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
.1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
EU EN |
USA - |
Germany DIN,WNr |
Japan JIS |
France AFNOR |
England BS |
Italy UNI |
China GB |
Sweden SS |
Poland PN |
Czechia CSN |
Finland SFS |
Austria ONORM |
Russia GOST |
NiMo16Cr15W | C276 | 2.4819 | NW 0276 | - | - | - | - | - | - | - | - | - | ХН65МВУ |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Hastelloy C276 | 0.10 max | 0.50 max | 0.50 max | 0.015max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C276 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
We Manufacturer, Supplier and Exporter ASTM B575 Hastelloy C276 Sheets for wide range of industries. Some of the examples are : – Chemicals, Nuclear, Architectural applications, Paper & Pulp Industries, Constructions, Food & Beverages, Automobiles, Sugar Mills, Pharmaceuticals, Power Plants, Shipbuilding, Water Pipelines, Textiles, Refineries, Dairies & Breweries, Railways, Petrochemicals etc.
