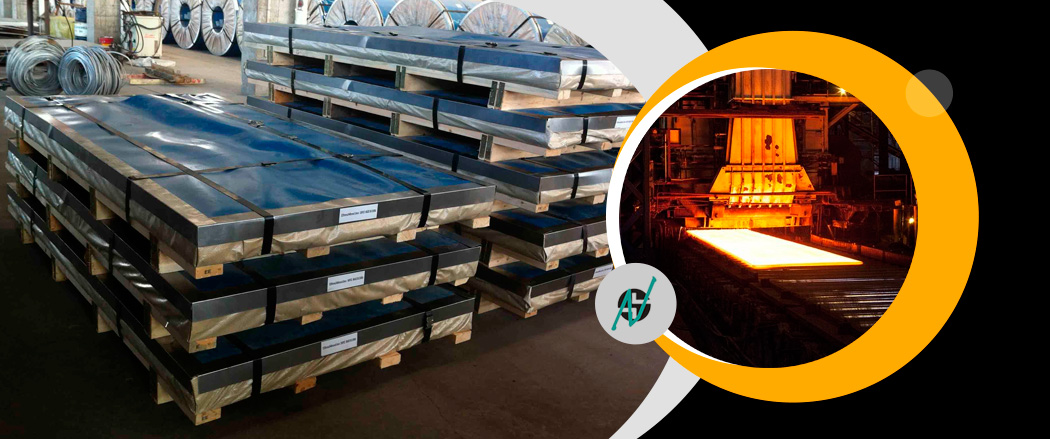

One well-known supplier of SS 904L Plates is Nandini Steel. These plates come in a variety of sizes and are renowned for their excellent finish and high level of expertise. They are widely used in a variety of fields, including as heavy engineering, pipeline and railroad systems, and automobiles. The reason that Stainless Steel DIN 1.4539 Plates are so in demand is because they are carefully made and guarantee to operate flawlessly. They are quite popular among our customers because to their long-lasting working life, low maintenance requirements, and heat resistance. We are concerned with the creation and design of automatically acceptable plates that are supported by a certificate of authorization. Such plates' lengths are merely determined by the manufacturing specifications.
They are created by utilising premium first-class metals that can withstand high temperatures and stress. The main purpose is to allow a fluid to pass through at a favourable degree angle to the middle stream of flow. These stainless steel UNS N08904 plates come from us with a variety of noteworthy features that make them appropriate for regionally restricted conventional plumbing structures. The main cause is the separation of contemporary stores, which might be quite competitive with one another. Due to their amazing finish, resistance to abrasion and corrosion, as well as the use of exact tensile strength, they are highly wanted by the consumers.
Specifications | ASTM A240 / ASME SA240 |
---|---|
Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
Size Range | Cold rolled Plate 0.5-6.4 mm Hot rolled Plate 3.0–10.0 mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Thickness | 0.3 mm to 120 mm |
International Standard | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
Tolerances (width / thickness) | EN 10258/ DIN 59381) EN 10151 EN 10088 |
Finish | 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Plate Surface finish | Thickness (mm) | Width (max mm) |
---|---|---|
2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
2H – Work hardened plate | 0.4–6.35 | 1524 |
Polished, brushed plate | 0.5–4.0 | 1524 |
Plate Surface finish | Gauge (in) | Width (max in) |
2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
BA Mexinox only | 18–28 | 48 |
Polished Sheet (not brushed) | 11–24 | 60 |
Temper rolled Sheet Mexinox only | 13–29 | 48 |
STANDARD | WERKSTOFF NR. | UNS | JIS | KS | BS | AFNOR | EN |
SS 904L | 1.4539 | N08904 | SUS 904L | STS 317J5L | 904S13 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
---|---|---|---|---|---|---|
inches | mm | lbs/ft² | kg/m² | lbs | kg | |
0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
10 | 78.5 | 94 | 118 | 141 | 188 |
12 | 94.2 | 113 | 141 | 170 | 226 |
16 | 125.6 | 151 | 188 | 226 | 301 |
20 | 157 | 188 | 236 | 283 | 377 |
22 | 172.7 | 207 | 259 | 311 | 415 |
25 | 196.25 | 236 | 294 | 353 | 471 |
28 | 219.8 | 264 | 330 | 396 | 528 |
32 | 251.2 | 301 | 377 | 452 | 603 |
36 | 282.6 | 339 | 424 | 509 | 678 |
40 | 314 | 377 | 471 | 565 | 754 |
45 | 353.25 | 424 | 530 | 636 | 848 |
50 | 392.5 | 471 | 589 | 707 | 942 |
55 | 431.75 | 518 | 648 | 777 | 1036 |
60 | 471 | 565 | 707 | 848 | 1130 |
65 | 510 | 612 | 765 | 918 | 1224 |
70 | 549.5 | 659 | 824 | 989 | 1319 |
75 | 588.75 | 707 | 883 | 1060 | 1413 |
80 | 628 | 754 | 942 | 1130 | 1507 |
90 | 706.5 | 848 | 1060 | 1272 | 1696 |
100 | 785 | 942 | 1178 | 1413 | 1884 |
EU EN |
USA - |
France AFNOR |
England BS |
Sweden SS |
Poland PN |
X1NiCrMoCu25-20-5 | 904L N08904 |
Z2NCDU25-20 | 904S13 | 2562 | 00H22N24M4TCu |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.95 g/cm3 | 1510 °C (2750 °F) | Psi – 75,000 , MPa – 485 | Psi – 40,000 , MPa – 275 | 20 % |
We Manufacturer, Supplier and Exporter ASTM A240 Stainless Steel 904L Plates for wide range of industries. Some of the examples are : – Refineries, Paper & Pulp Industries, Pharmaceuticals, Architectural applications, Power Plants, Food & Beverages, Automobiles, Sugar Mills, Textiles, Chemicals, Dairies & Breweries, Shipbuilding, Constructions, Railways, Petrochemicals, Nuclear, Water Pipelines etc.
